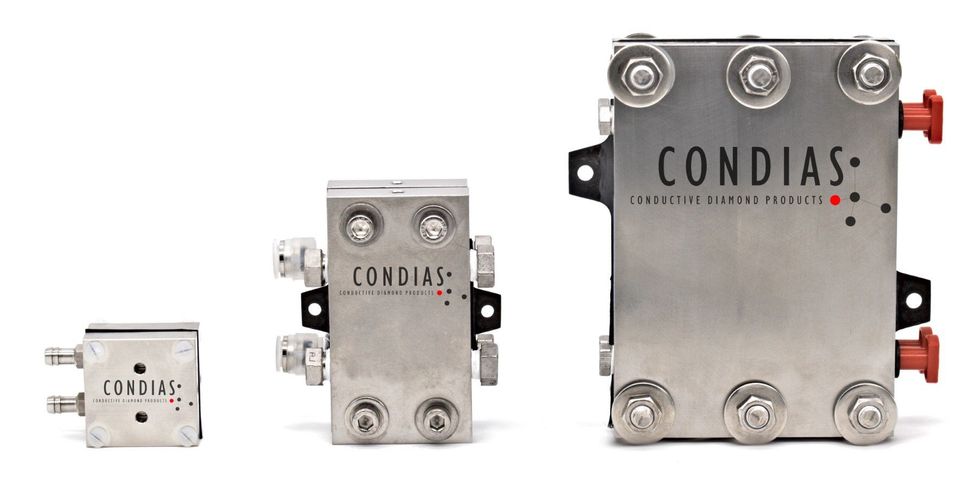

Scalable SSZ Electrolysers
with diamond-coated silicon electrodes
The scalable steel sandwich cells (SSZ) are designed for use in electrosynthesis. They have a modular, simple design that makes it easy to adapt to different systems.
The CONDIACELL® cell model SSZ-100, for example, is designed as a versatile development tool for electro-synthetic applications. It offers two chambers which share a double-sided DIACHEM® electrode as anode and stainless steel cathodes. If only one chamber is used for electrochemistry, the other chamber can be used for backside cooling of the anode. The flexible and modular design supports easy maintenance and robust operation.
no technology break from laboratory to production
free scalability
undivided / divided structure
suitable for organic and water-based electrolytes
Properties of SSZ 100
| dimensions (l x w x h) | 100 mm x 140 mm x 37 mm |
|---|---|
| weight | 3.75 kg |
| max. pressure | 10 bar |
| flow rate | 1.7 m/s @ 5 bar |
| max. amperage | 90 A (= 1 A/cm², use in one chamber |
| max. voltage | 60 V |
| max. temperature | 80°C |
